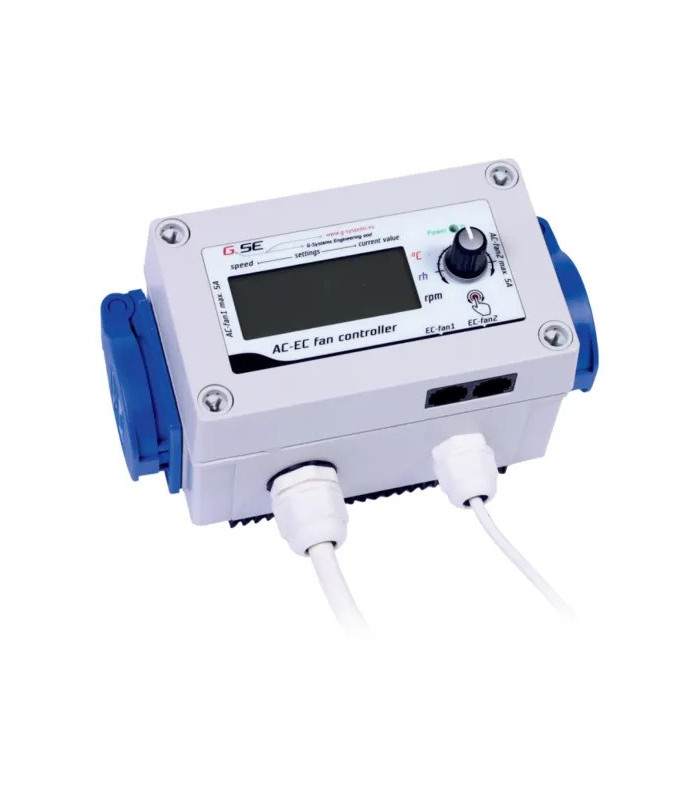

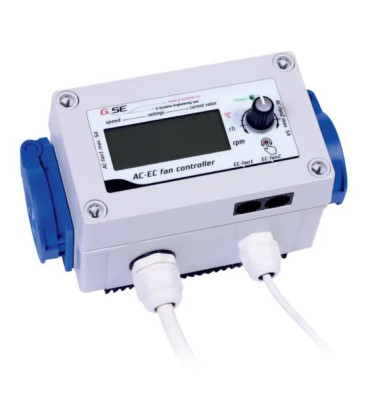

GSE EC-AC Controller

GSE EC-AC Controller

GSE EC-AC Controller is an advanced climate controller designed for precise control of both EC and AC fans in grow rooms, tents, and greenhouses. It automatically regulates ventilation based on temperature to maintain a stable and optimal growing environment.

The controller continuously monitors temperature and humidity and automatically adjusts fan speed to maintain your desired settings. It supports both energy-efficient EC fans and traditional AC fans, making it a flexible solution for various ventilation setups.

Functions and control

Equipped with an LCD display and a rotary push button for quick setup and easy reading of fan data, including:

• Ventilation speed
• Temperature
• Day / night humidity
• Negative air pressure
• RPM (revolutions per minute) of the EC exhaust fan

Advantages and specifications

• Control for both EC and AC fans
• Integrated light sensor for automatic day/night detection
• Two 5A / 230V AC outputs for intake and exhaust fans
• 2 x RJ45 connectors with selectable 0–10V or PWM signal
• Two internal temperature sensors protect heatsink and processor
• Precise and automatic climate regulation
• Supplied with 1.5 m power cable and 4 m sensor cable
• Ready to use out of the box
• Up to 15 programmable individual settings

Programmable settings

• Day temperature
• Day temperature hysteresis
• Day humidity
• Day humidity hysteresis
• Minimum day speed
• Maximum day speed
• Night temperature
• Night temperature hysteresis
• Night humidity
• Night humidity hysteresis
• Minimum night speed
• Maximum night speed
• Negative pressure setting
• Sensor level adjustment
• Day/night mode switching

A professional solution for growers who need stable temperature, optimal humidity, and efficient ventilation control at every stage of cultivation.
