TT-125 Ø125mm 220/280m3 2-speed with cable

TT-125 Ø125mm 220/280m3 2-speed with cable

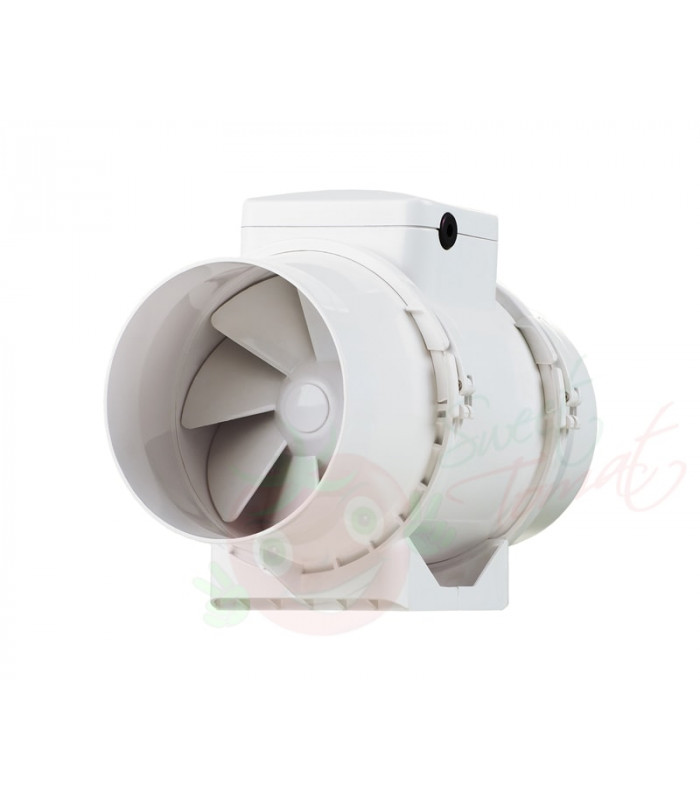

Vents TT line fans are designed to supply high pressure, powerful air flow with low noise level to all areas where efficient air exchange is expected.

An outer cover made of high quality plastic contains open clamps for easy access to the main fan, making maintenance quick and easy.

Two different settings of 220 and 280m3/h gives full control over the airflow for better adaptation to different conditions.

Vents TT-125 Mixed-Flow fan is equipped with a single-phase motor and thermal overheating protection to prevent motor overload. Reinforced ball bearings guarantee long trouble-free operating time of up to 40000 hours with continuous use 24 hours a day.

• Powerful air flow with high pressure and low noise level
• Easy to maintain
• 2 speed settings
• Thermal overheating protection
• Strong engine with a long hassle-free operating time

Specifications:

• Frequency: 50/60 Hz
• Voltage: 230 V
• Power consumption: 23-37 W
• RPM: 1950-2455
• Maximum air capacity: 220-280 m3/h
• Sound pressure level (3m): 28-37 dB
• Mounting diameter: 125 mm
• Weight: 1.45 kg
• Mounting: inline
• Protection: IP X4

Cable to the fan is sold separately

Instruction how to change the speed: Check the Video tab
